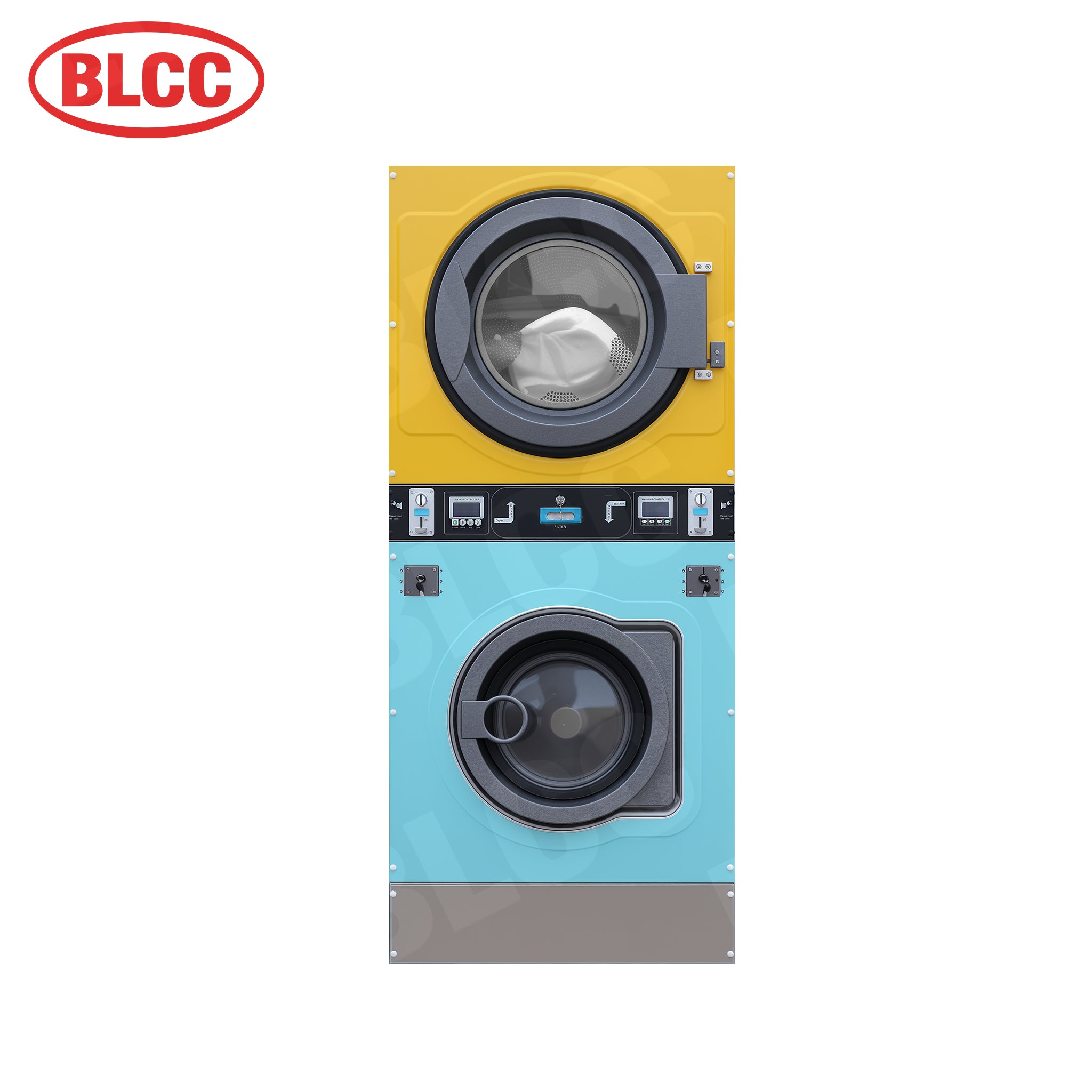

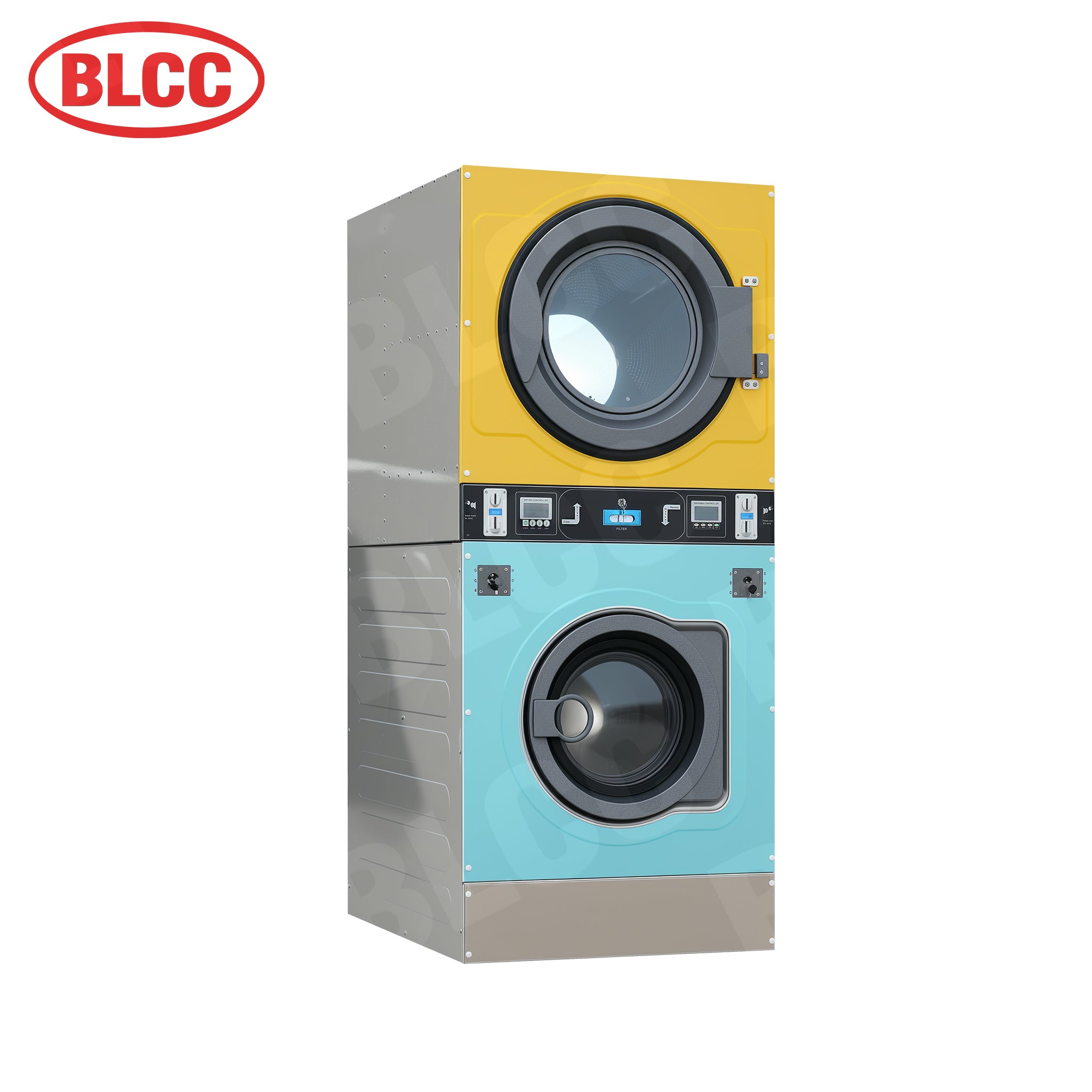

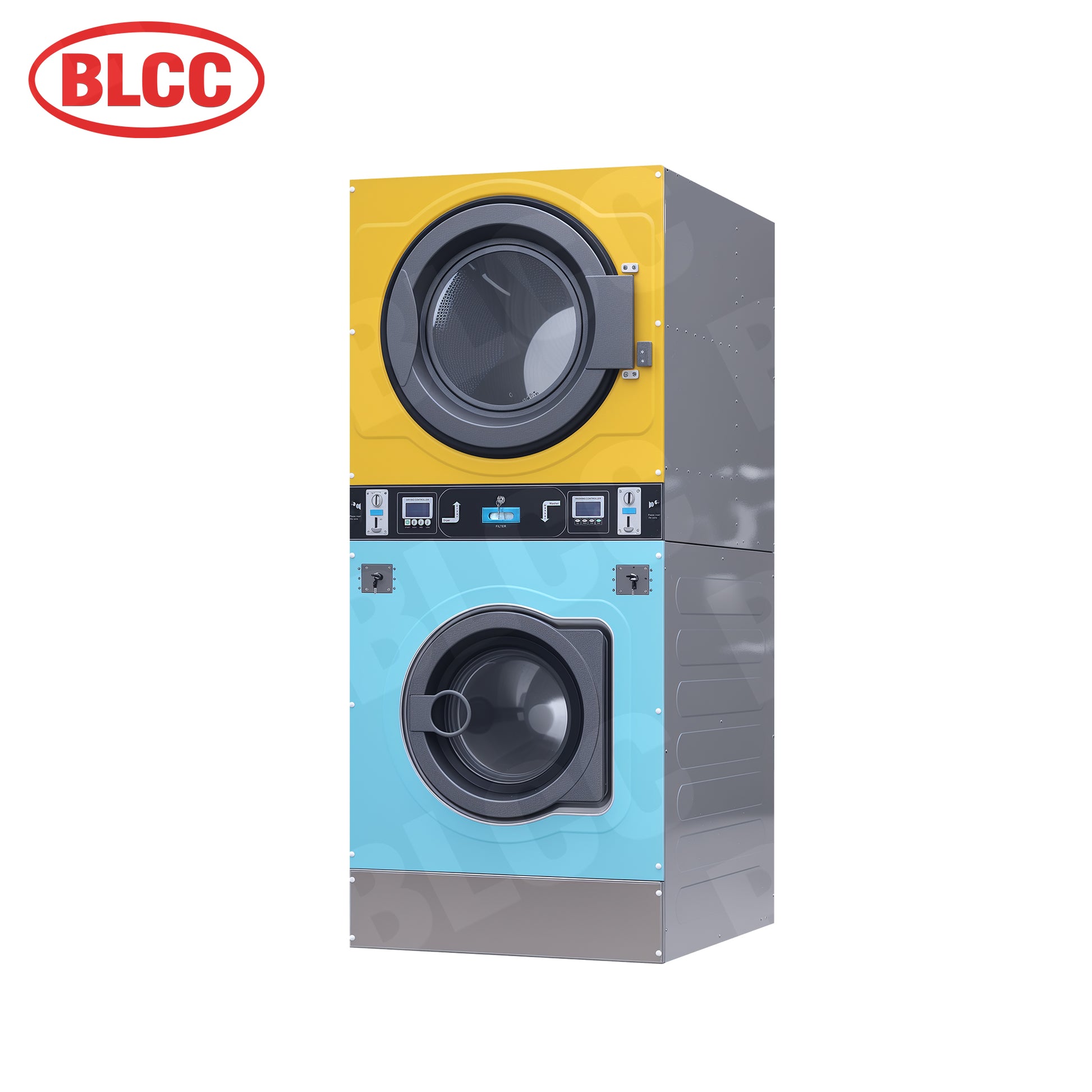

XTH Series GB Stack Washer And Dryer

Product Details

1. The inner tank is made of 304 stainless steel, which offers a longer lifespan, is easier to clean, and minimizes wear.
2. Washing, dehydration, and drying are all centrally controlled by a computer. This all-in-one machine completely replaces the traditional washer/dryer combination, offering a compact design and 100% space savings.
3. It can be configured for coin insertion, QR code scanning, or card swiping.
4. The washing control system is microcomputer-controlled, making it convenient, fast, and easy to operate.
5. The drying system utilizes the latest national thermal energy circulation system, significantly improving drying efficiency and making it more energy-efficient and practical than traditional drying systems.



Model	Unit	XTH-12
Washing capacity	kg	12
Drying capacity	kg	12
Noise	dB (A)	≤70
Washing speed	rpm	45
Drying speed	rpm	36
Distribution speed	rpm	350
High dehydration speed	rpm	700
Motor power	kw	1.5
dryer motor power	kw	0.2
Power of Air Blower	kw	0.55
Power of Heater	kw	8
Heating form	（）	Electricity, steam, liquefied petroleum gas, gas, natural gas
Drying power	kw	8.5
Water consumption	L	115
Air consumption	kg	≤16
Drying air consumption	kg	15-18
Steam pressure	MPa	0.4-0.6
Cold water inlet size	mm	φ20
Hot water inlet size	mm	φ20
Steam inlet size	mm	φ20
Drain size	mm	φ75
Rated voltage	v	AC110/220/380/415/440
Drain size	Hz	50/60Hz
Machine weight	kg	530
Dimensions	mm	900*1100*2100









Note: Due to the region and transportation method, please contact the salesperson to obtain a freight quote
