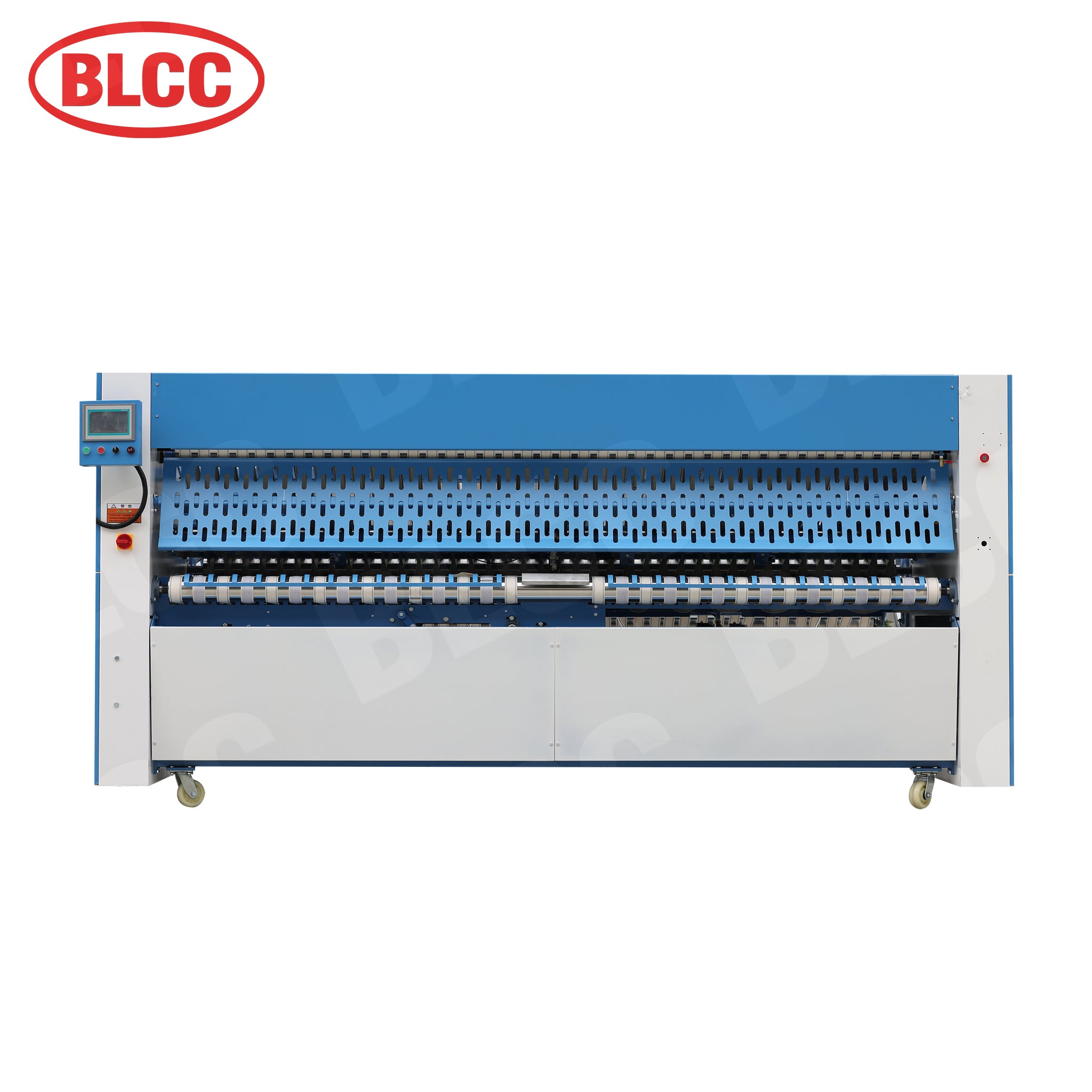

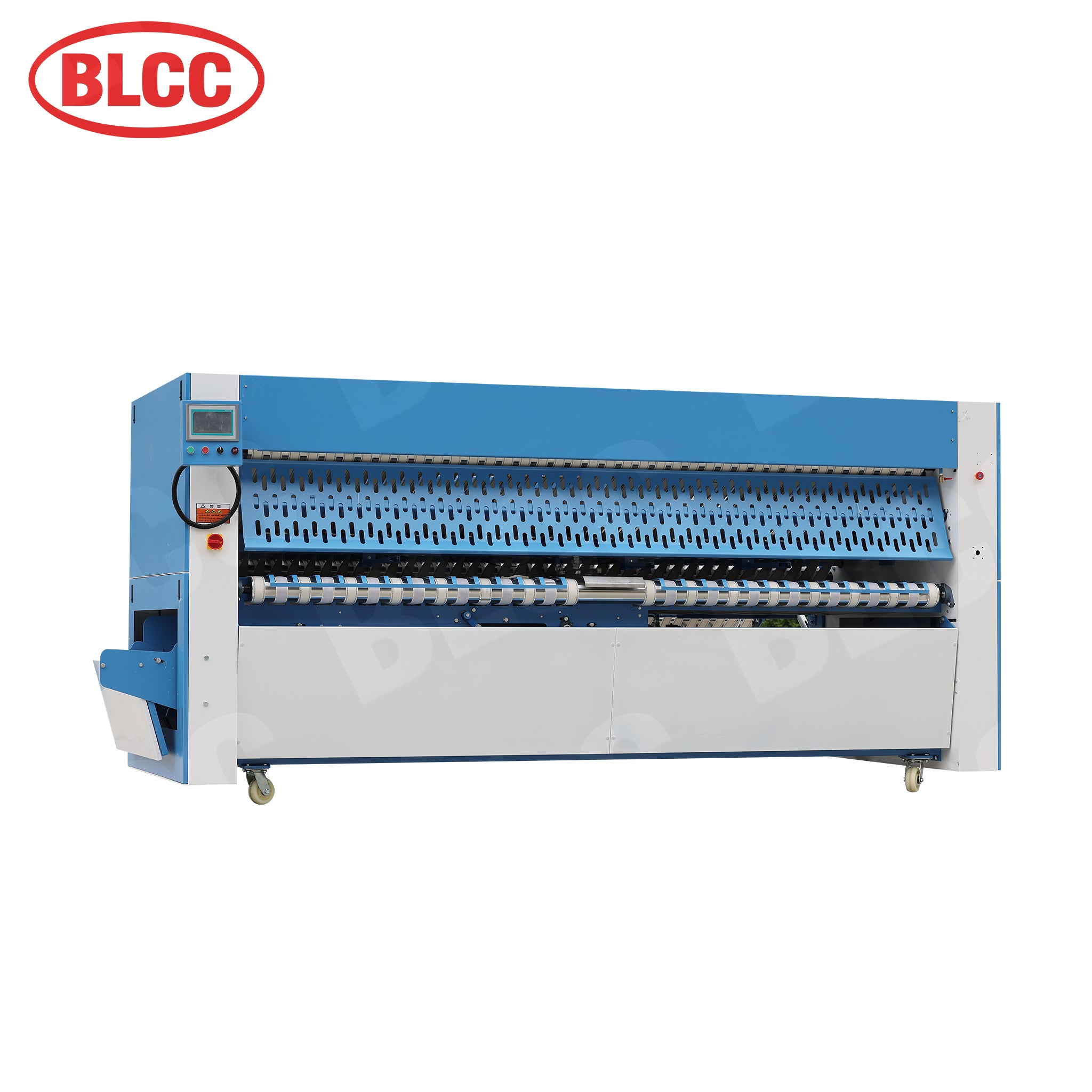

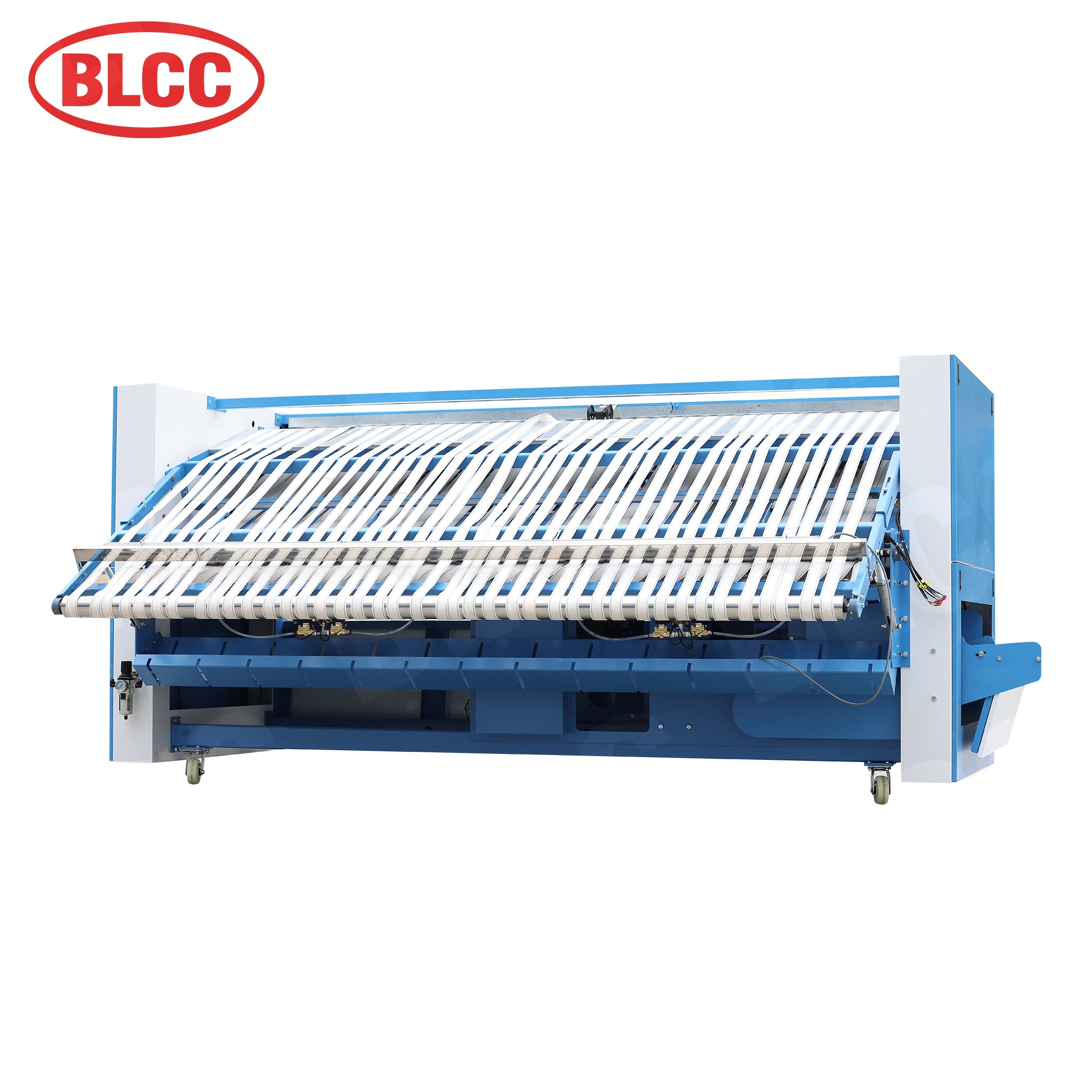

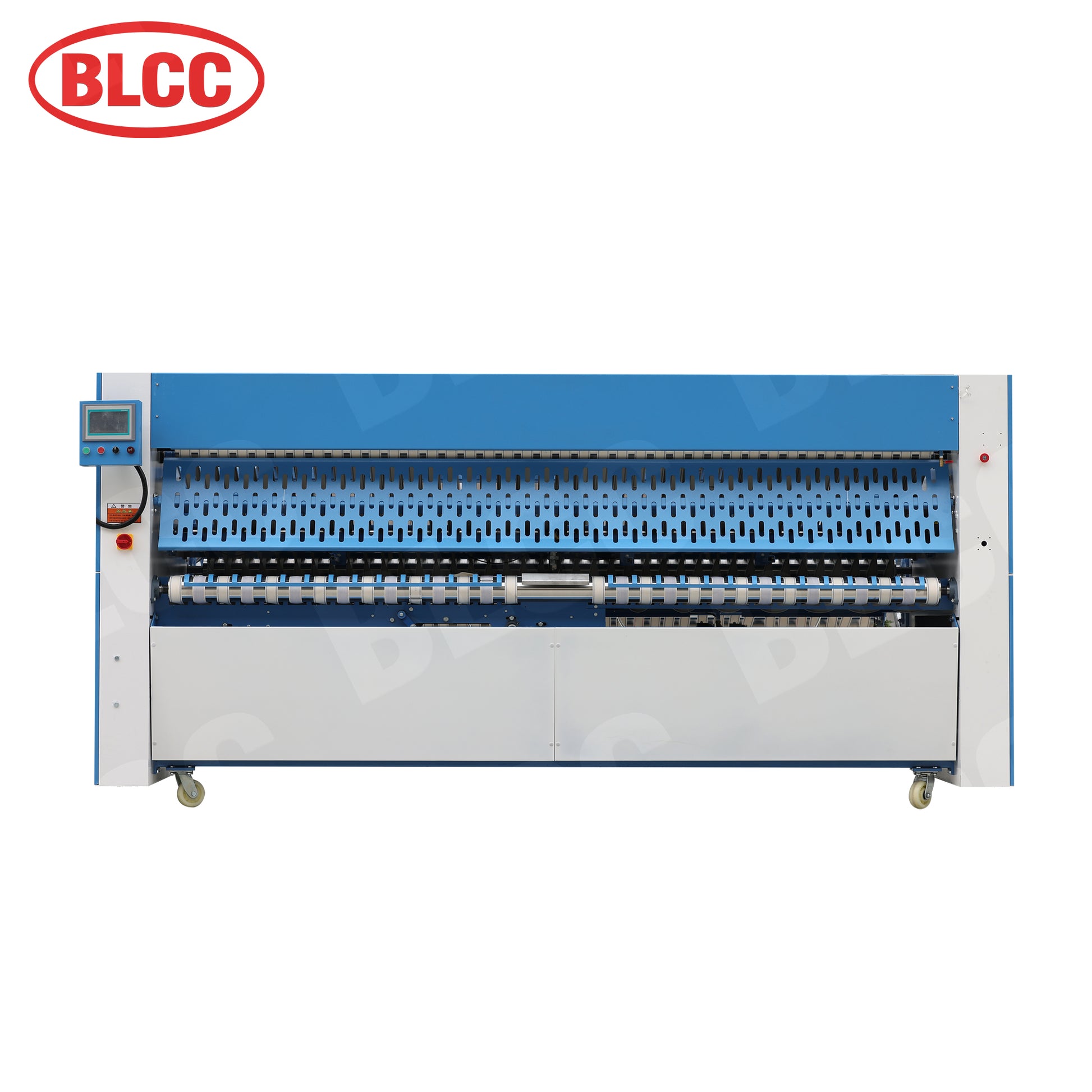

Folding Machine

Product Details

1. Features folding standard identification, protection, and alarm functions, along with self-diagnosis and an automatic management system.
2. Horizontal and vertical folding start-up control, enabling two horizontal and two vertical folding channels, four channels.
3. Features a closed-loop speed control system, photoelectric control system, speed measurement system, and key transmission components. Imported components enable speed control and precise positioning of the fabric conveyor system, accurately measuring fabric length and calculating folded length.
4. Enables process control and direct integration with the ironing machine, significantly improving work efficiency and reducing worker workload.
5. Features a computer controller with a fully Chinese human-machine interface, 17 switch inputs and 17 outputs, a large LCD display that dynamically displays the folding machine's operating status, and a fully digitally controlled variable frequency drive system, allowing for the programming of 30 automatic folding programs.

Model	ZD3300V
Maximum folding width (mm)	3300
Working capacity (normal sheet) m/min	30
Air pressure (MPa)	0-4
Air consumption (L/min)	80
Power (kW)	1.5+0.75+0.55
Electricity consumption (kW/h)	3
Air compressor displacement (m³/min)	0.3
Voltage (VP/HZ)	380/3/5/50
External dimensions (mm)	2120*1690*3760
Machine weight (kg)	1450

]



Kindly be advised that our website is undergoing maintenance. The displayed price is a preventive placeholder and does not reflect the actual product cost.
We appreciate your patience and encourage you to contact us for an accurate quotation.

Note: Due to the region and transportation method, please contact the salesperson to obtain a freight quote
