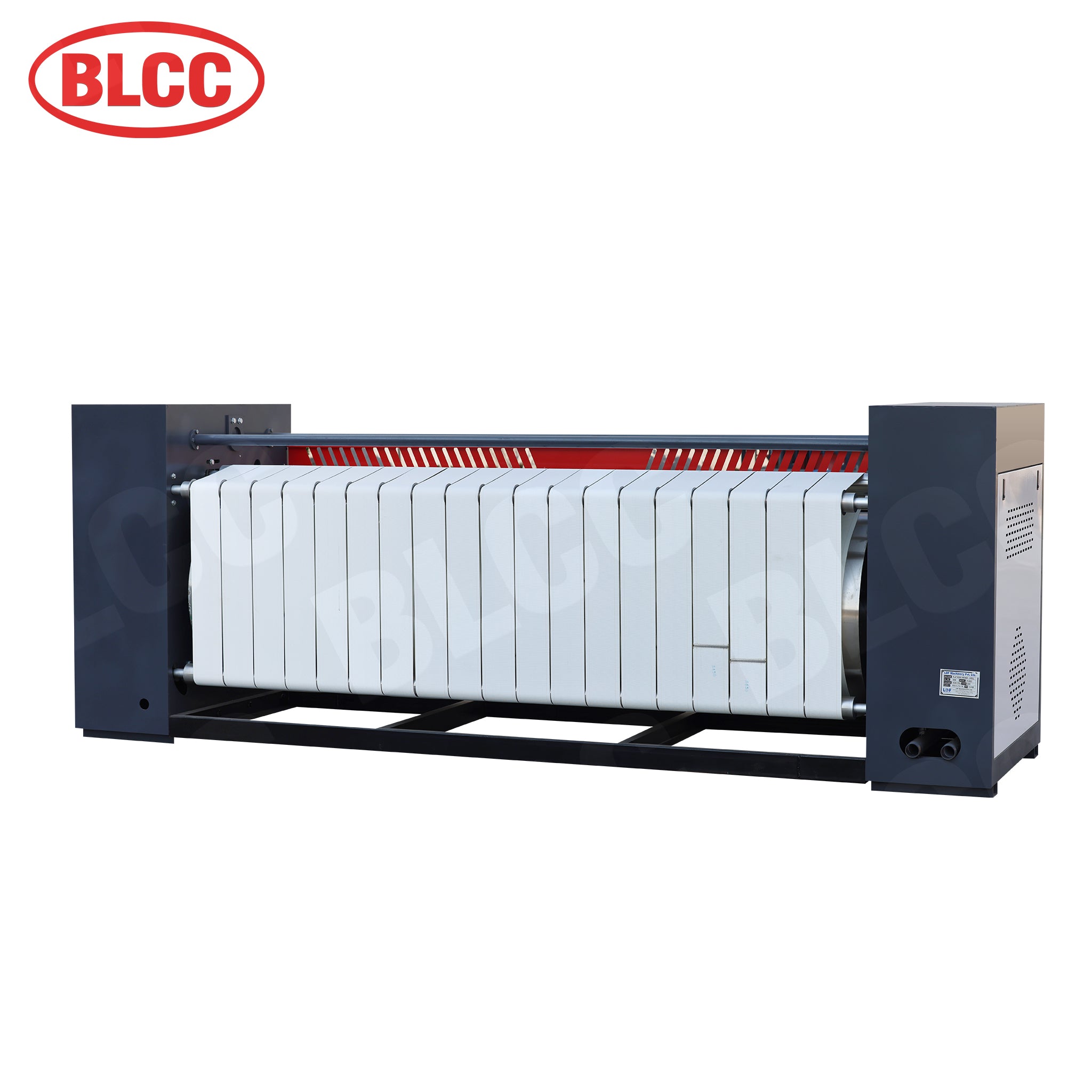

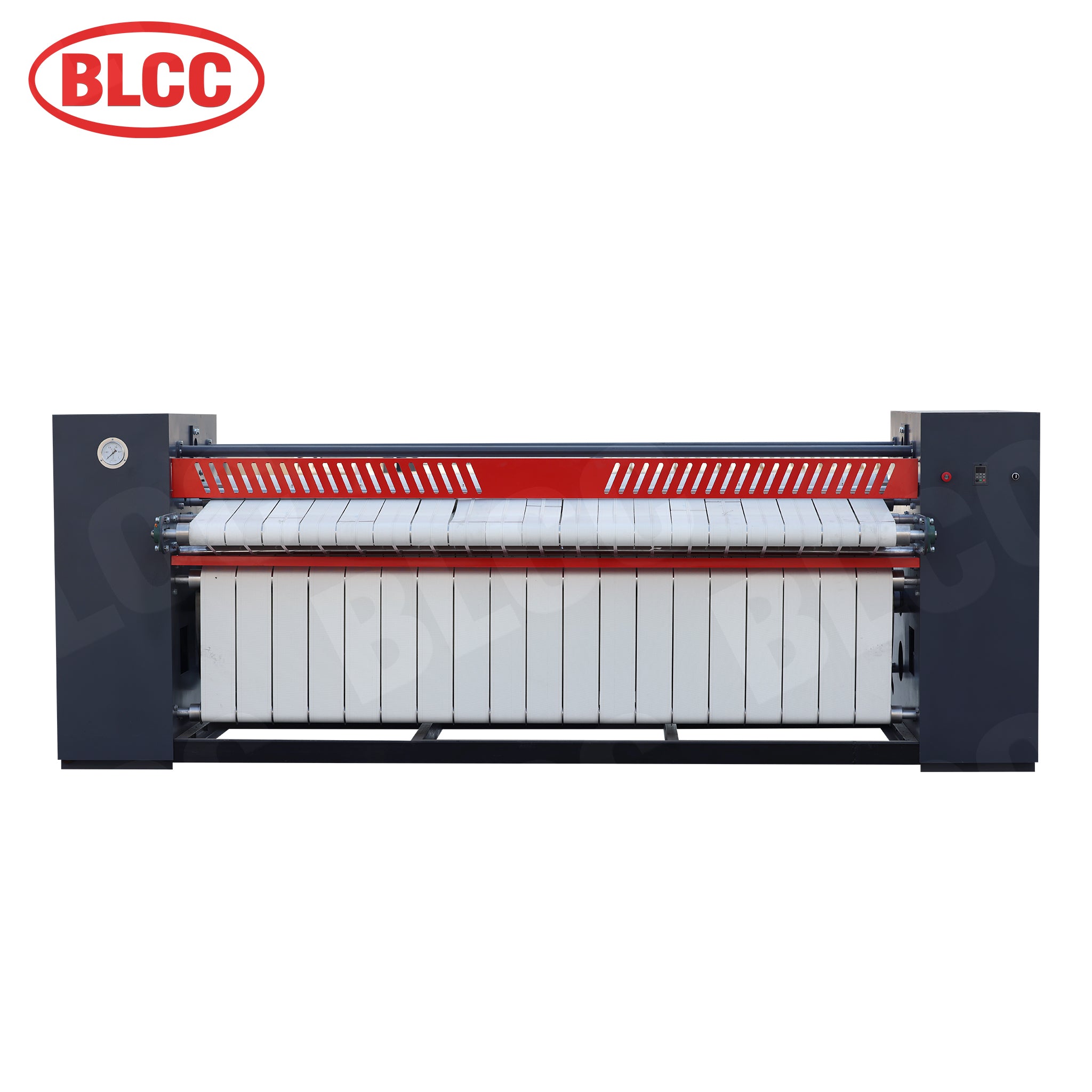

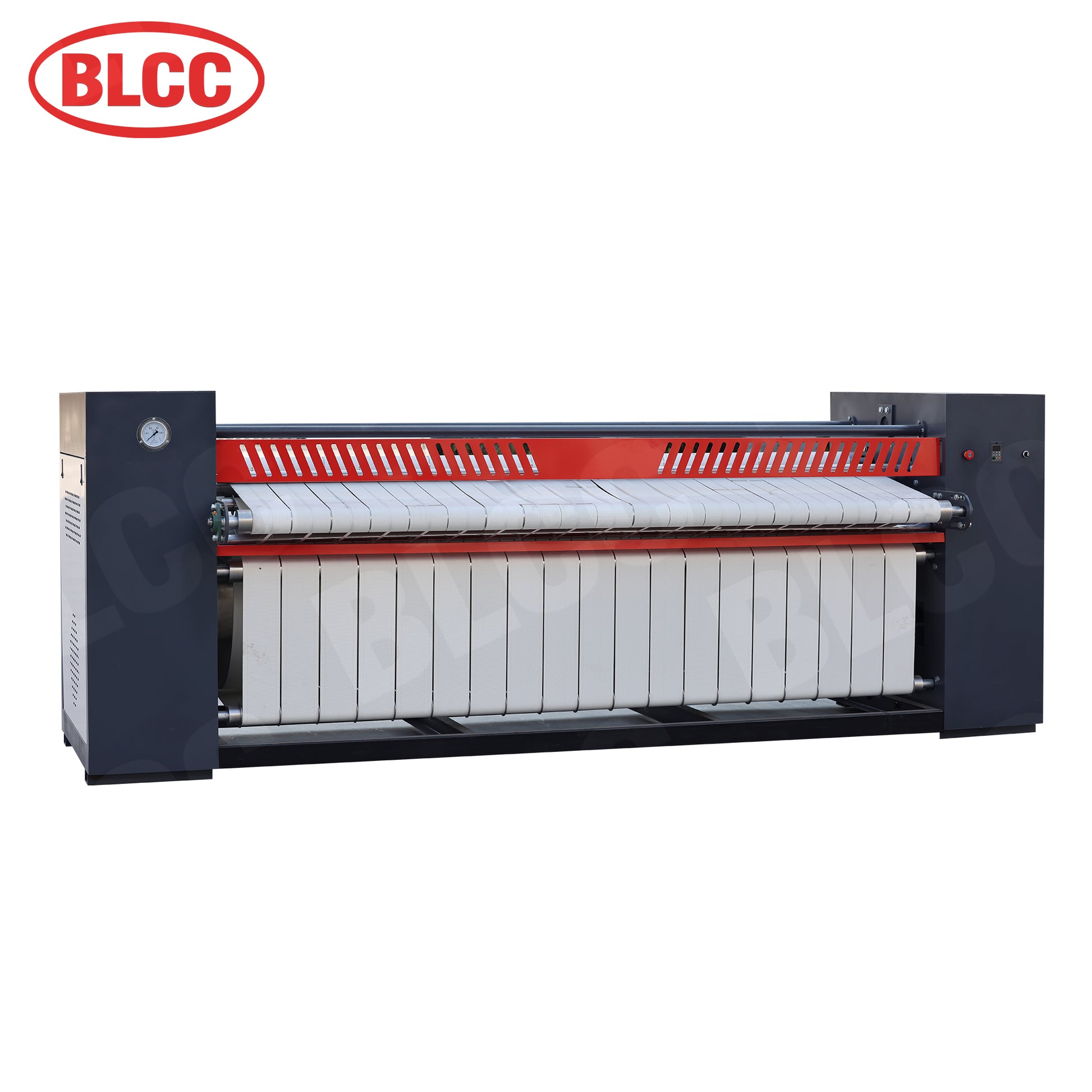

Flatwork ironer

Product Details

1. The drying drum is crafted from high-quality 304 stainless steel, offering fast heating, corrosion resistance, and easy fabric leveling.
2. The ironing machine consists of four or more rollers, which are electrically driven to meet customer needs.
3. The ironing machine utilizes a patented Japanese technology, featuring advanced technology, high efficiency, and high speed.
4. Once the ironing machine reaches a certain temperature, the damp linen is rolled between the rollers, removing a significant amount of moisture and achieving both ironing and drying.
5. The continuously variable speed allows users to select the appropriate ironing speed based on the needs and ironing requirements of the fabric.
6. The linen conveyor system utilizes high-quality, wide, fixed-type staple belts, eliminating the unpredictable movement of wide canvas fabrics during transport.
7. This machine features a temperature controller in the control system that automatically controls humidity, ensuring safe and reliable ironing of the fabric.



Model	YPR-3000-I
Roller Dimensions (mm)	600-800
Steam Pressure (mPa)	0.3-0.5
Steam Surface Temperature	168
Steam Consumption (kg/h)	100
Operating Speed (m/min)	0-25
Motor Power (kW)	1.1
Rated Voltage (V)	380
Roller Material	304
Electric Heating Power (kW)	36
Overall Dimensions (mm)	4200*1250*1350
Machine Weight (kg)	1000









Note: Due to the region and transportation method, please contact the salesperson to obtain a freight quote
